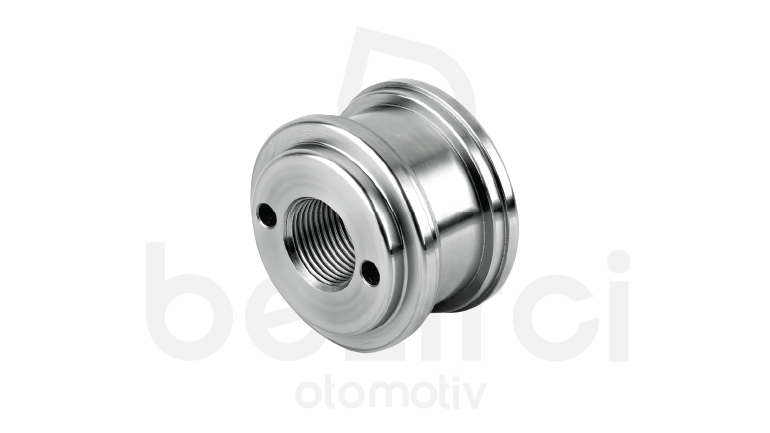

Hidrolik Silindir Çelik Piston Vidalı Tip
| Ürün Kodu : | BO4 |
| Kategori : | Hidrolik |
| Etiketler : | |
| Stok : | Stokta Var |
| ÜRÜN KODU | KOMPACTSET | ORING | D | D1 | L | L1 | DİŞ |
|---|---|---|---|---|---|---|---|
| BZC-PV-40 | 40x32x15,5x3,20 | 20,22x3,53 | 40 | 20 | 45 | 22.5 | 18x1,5 |
| BZC-PV-45 | 45x35x16,40x6,35 | 20,22x3,53 | 45 | 20 | 45 | 22.5 | 18x1,5 |
| BZC-PV-50 | 50x38x20,5x4,20 | 24,99x3,53 | 50 | 25 | 45 | 22.5 | 20x2 |
| BZC-PV-55 | 55x39x20,5x3,10 | 24,99x3,53 | 55 | 25 | 45 | 22.5 | 20x2 |
| BZC-PV-60 | 60x48x20,5x4,20 | 29,75x3,53 | 60 | 30 | 45 | 22.5 | 27x2 |
| BZC-PV-63 | 63x51x20,5x4,20 | 29,75x3,53 | 63 | 30 | 45 | 22.5 | 27x2 |
| BZC-PV-65 | 65x49x20,5x3,10 | 29,75x3,53 | 65 | 30 | 45 | 22.5 | 27x2 |
| BZC-PV-70 | 70x58x20,5x4.20 | 29,75x3,53 | 70 | 30 | 45 | 22.5 | 27x2 |
| BZC-PV-75 | 75x55x22,4x6,35 | 29,75x3,53 | 75 | 30 | 50 | 25 | 27x2 |
| BZC-PV-80 | 80x66x22,4x5,20 | 34,52x3,53 | 80 | 35 | 50 | 25 | 30x2 |
| BZC-PV-85 | 85x65x22,4x6,35 | 39,70x3,53 | 85 | 40 | 50 | 25 | 35x2 |
| BZC-PV-90 | 90x76x22,4x5,20 | 39,70x3,53 | 90 | 40 | 50 | 25 | 35x2 |
| BZC-PV-100 | 100x86x22,4x5,20 | 45x4 | 100 | 45 | 50 | 25 | 40x2 |
| BZC-PV-110 | 110x96x22,4x5,20 | 45x4 | 110 | 45 | 50 | 25 | 40x2 |
| BZC-PV-115 | 115x101x22,4x5,20 | 45x4 | 115 | 45 | 50 | 25 | 40x2 |
| BZC-PV-120 | 120x106x22,4x5,20 | 50x4 | 120 | 50 | 50 | 25 | 45x2 |
| BZC-PV-125 | 125x103x26,5x5,10 | 50x4 | 125 | 50 | 60 | 30 | 45x2 |
| BZC-PV-130 | 130x105x25,4x6,35 | 60x4 | 130 | 60 | 60 | 30 | 50x2 |
| BZC-PV-140 | 140x123x26,5x7,20 | 60x4 | 140 | 60 | 60 | 30 | 55x2 |
| BZC-PV-150 | 150x125x25,4x6,35/1 | 65x4 | 150 | 65 | 60 | 30 | 60x2 |
| BZC-PV-160 | 160x143x26,5x7,20 | 65x4 | 160 | 65 | 60 | 30 | 60x2 |
| BZC-PV-170 | 170x145x25,4x12,70 | 70x4 | 170 | 70 | 65 | 30 | 65x2 |
| BZC-PV-180 | 180x163x26,5x7,20 | 75x4 | 180 | 75 | 60 | 30 | 70x2 |
| BZC-PV-190 | 190x165x22,4x12,7 | 85x4 | 190 | 85 | 65 | 30 | 75x2 |
| BZC-PV-200 | 200x175x25,40x12,70/1 | 80x5 | 200 | 80 | 70 | 30 | 75x2 |
| BZC-PV-220 | 220x190x35,40x6,35/1 | 90x5 | 220 | 90 | 70 | 30 | 85x2 |
| BZC-PV-230 | 230x205x25.4x12.70 | 100x5 | 230 | 100 | 70 | 30 | 95x2.5 |
| BZC-PV-250 | 250x225x25,40x12,70 | 100x5 | 250 | 100 | 70 | 30 | 95x2.5 |
